- Year: 2002
- Length: 77 ft
- Price: $2,000,000
- Located in Seattle, WA US
- Hull Material: Composite
- Engine/Fuel Type: diesel
- YW# 4291838
This handsome Carl Schumacher designed 77 foot custom carbon performance sloop was built by NORTHERN MARINE LLC in Seattle in 2002. She is a comfortable and capable cruiser easily sailed by 2 with accommodations for 8. With a fin keel and bulb, and carbon composite rudder, her hull is constructed of 5 outside plies of carbon fiber, 1 inch balsa core, 4 inside carbon plies, with a balance of cold molded cedar final interior skin and integral laminated carbon fiber unidirectional chainplates. The deck is a carbon fiber and balsa core sandwich with teak overlay. Cascadia is a 7/8 rigged fractional sloop with and inner forestay and running back check stays. Twin wheel in a large open aft cockpit. The deck layout has a trunk cabin forward with the pilot house aft. Her beautiful interior styling is traditional with Madrona wood veneers chosen from 4 trees and matched for each cabin. All trim is solid Madrona. She is powered by a Yanmar4LHA-DJE 165 hp four cylinder diesel engine with shaft drive. Cascadia has always been maintained to the highest standard by her full time professional crew. Please see the full spec's and call for more information on this quality performance cruiser.
Please call to set an appointment to view, we are open 7 days a week.
Make
Make: Northern Marine Builder: NORTHERN MARINE LLC Designer: Carl Schumacher
Measurements
Length Overall: 77.00 ft Max Draft: 13.00 ft Displacement:76.00 lb 76.00 Ballast Weight: 25.00 lb Beam: 18.00 ft
Engines
Total Power: 165|horsepower Engine Brand: Yanmar Year Built: 0 Engine Model: 4LHA-DJE Engine/Fuel Type: diesel Engine Hours: 3770 Engine Power: 165|horsepower
Tanks
Fresh Water Tanks: 1 (343 Gallons) Fuel Tanks: 1 (466 Gallons)
Accommodations

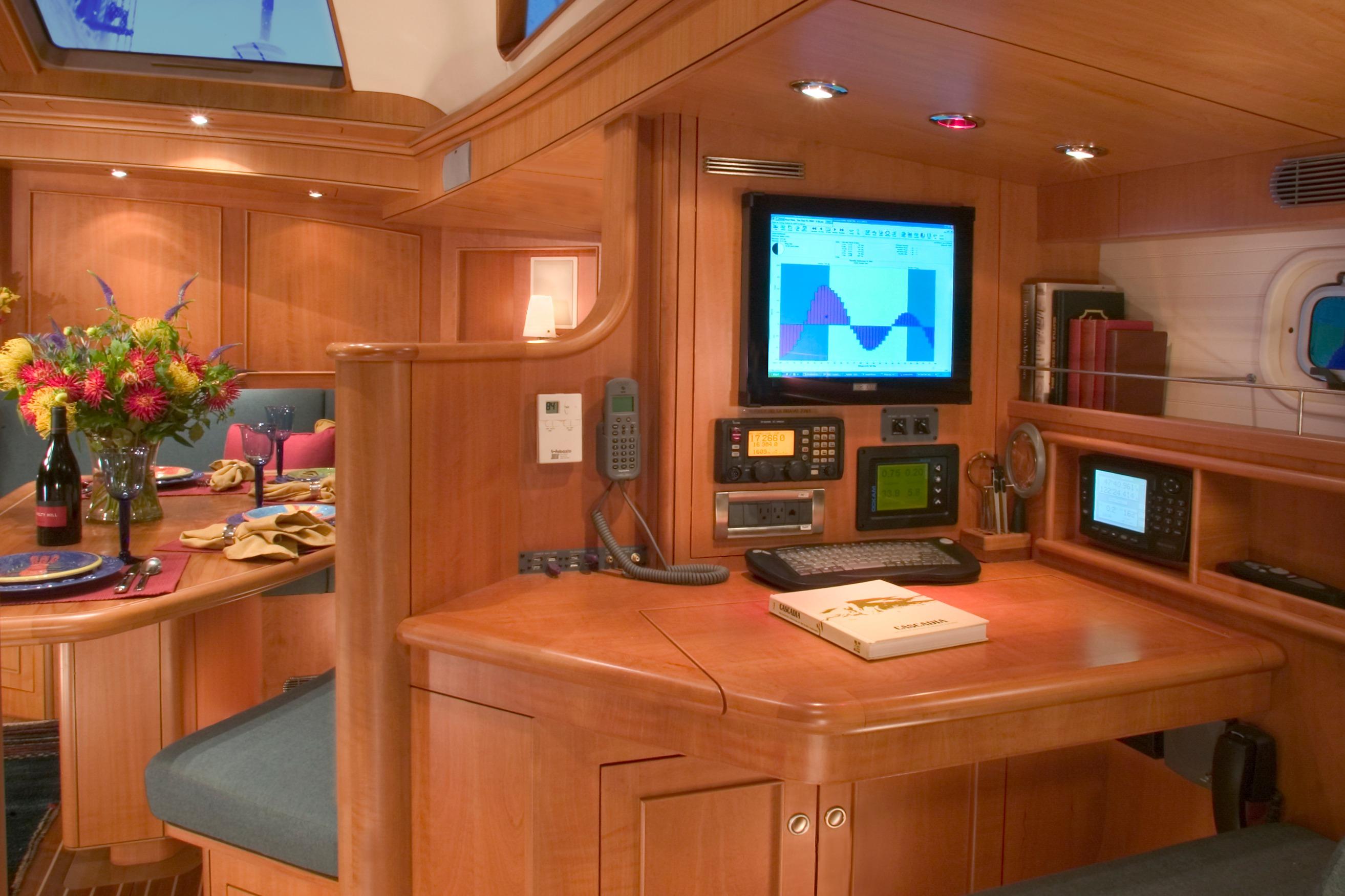

Traditional layout with madrona overlay, and madrona trim work, with the well equipped galley to port. The navigation station is starboard, midships, with a bench seat.
Large dinette table to starboard with U-shaped seating.
One owners ensuite head and one guest head both with enclosed shower stalls.
Crew head aft with shower
Owners stateroom forward offers a raised island berth with storage closets and an ensuite head.
Guest stateroom 1 is forward to starboard with side by side berths that can be moved together to make a double.
Guest stateroom 2 to port with upper and lower bunk beds.
Guest stateroom 3 with aft quarter berths - crew quarters.
Garage aft with kayak, toy, and gear storage

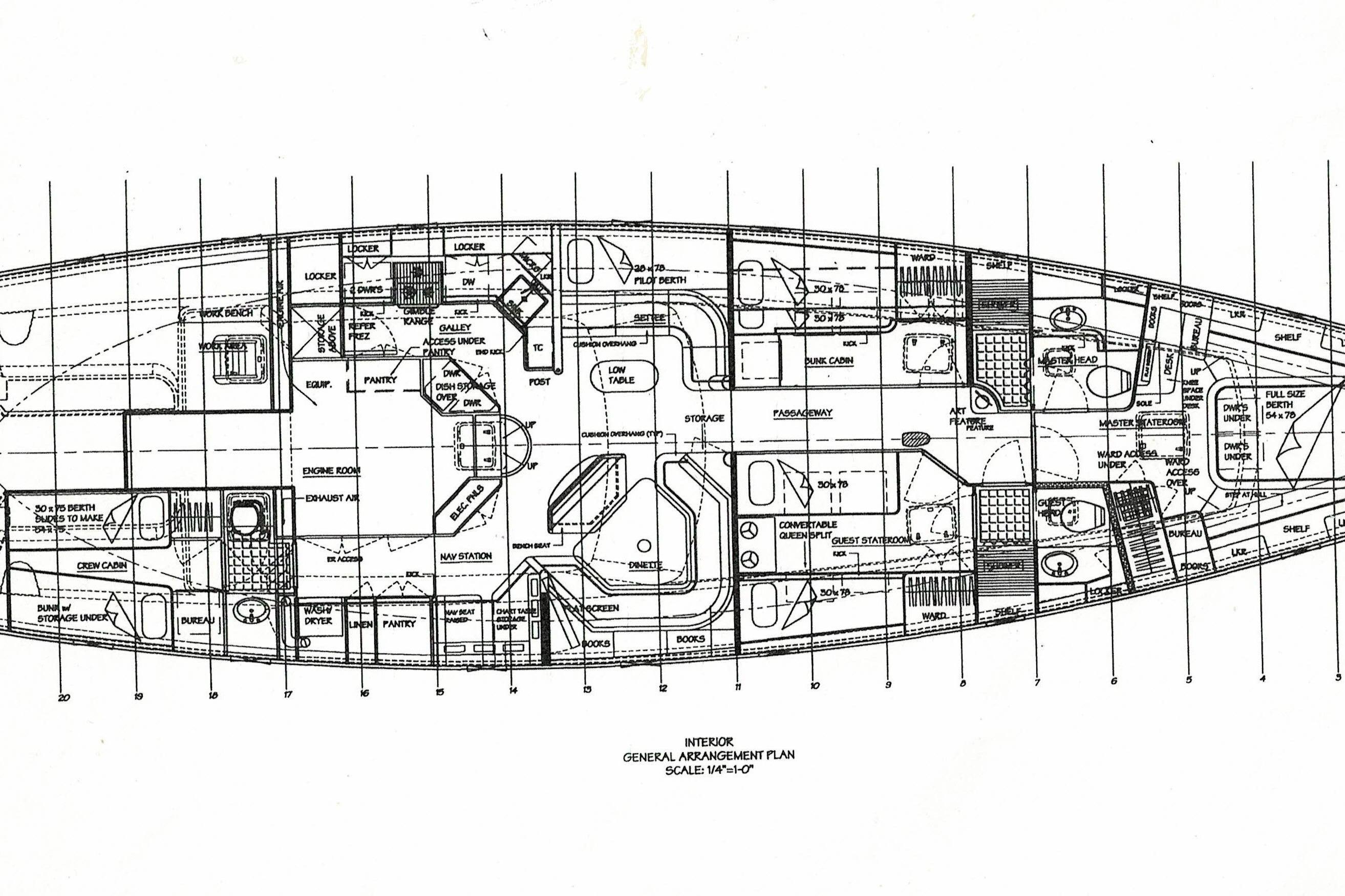

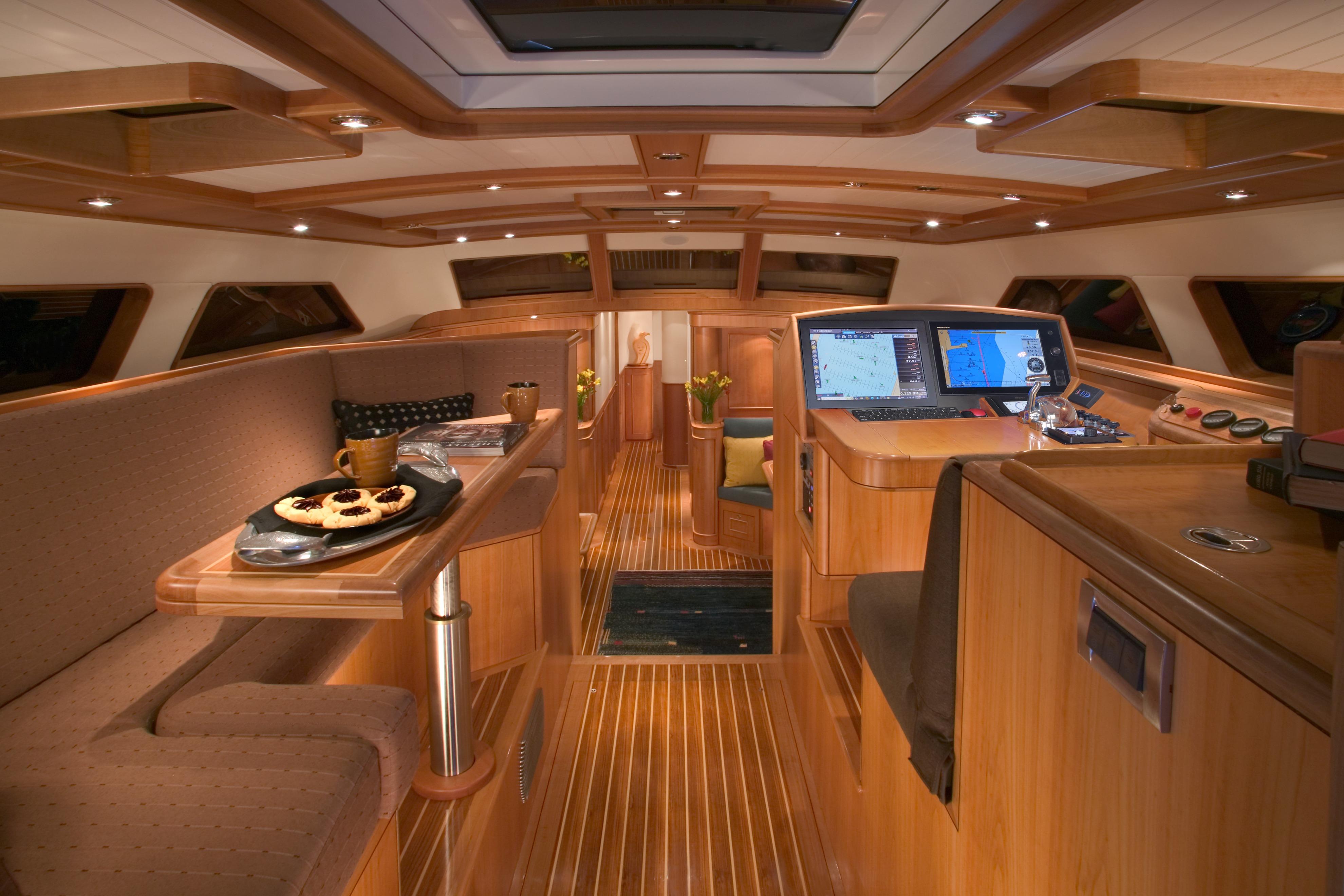

WalkthroughFrom the cockpit moving forward and down stairs to the raised pilothouse with helm to starboard and C-shaped seating across to port. Moving forward and down steps to the dinette to starboard. Moving aft of the dinette the navigation station, followed by the pantry, linen closet, washer & dryer, Crew quarters.
To port the galley. Moving forward is the L--shaped settee. Moving forward thru the passageway is the bunk cabin, and forward the Owners stateroom with full size island berth and ensuite head.
To starboard moving aft from the owners stateroom, down the passageway, is the guest stateroom with side by side berths and head. Moving aft to the dinette
Mechanical Equipment- 2 Village Marine 20 GPH water makers
- Webasto diesel hydronic heater
- ZF 63-A Hydraulic gear driven transmission
- 2 16 gallon 110 VAC diesel hydronic water heaters
- (3) Planus heads
- (4) 24 VDC bilge pumps
- Splendide Washer dryer in the cabin
- Miele dryer in the garage
- Aft cockpit controls
- Furuno autopilot in cockpit and pilothouse - with rudder position indicator
- Furuno color plotter / radar - mounted at helm pedestal and pilothouse
- PC based navigation computer with large display at helm pedestal and navigation station
- Furuno GP-150 GPS at navigation station
- B&G network depth sounder on mast pod, cockpit, and navigation station
- B&G network speed on mast pod, cockpit, and navigation station
- B&G network wind on mast pod, cockpit and navigation station
- Iridium satellite phone
- (2) 6" Suunto compass on wheel pedestals
- Icom IC-M802 VHF at navigation station
- Ray Marine VHF in aft cockpit
- VHF antenna on masthead
- GPS, Radar, VHF and Cell booster on lower spreader and front of mast
- Murphy engine temperature indicator
- Murphy oil pressure indicator
- Marantz tuner
- Broad Water gimbaled four burner LPG marine stove with oven
- Upright stainless steel refrigerator w/ freezer below
- Twin stainless steel deep well sink in stone counter tops
- Avanti microwave
- Fisher & Paykel dishwasher
- Broan trash compactor
- Fold down transom converts to swim step
- Garage with kayak and gear storage

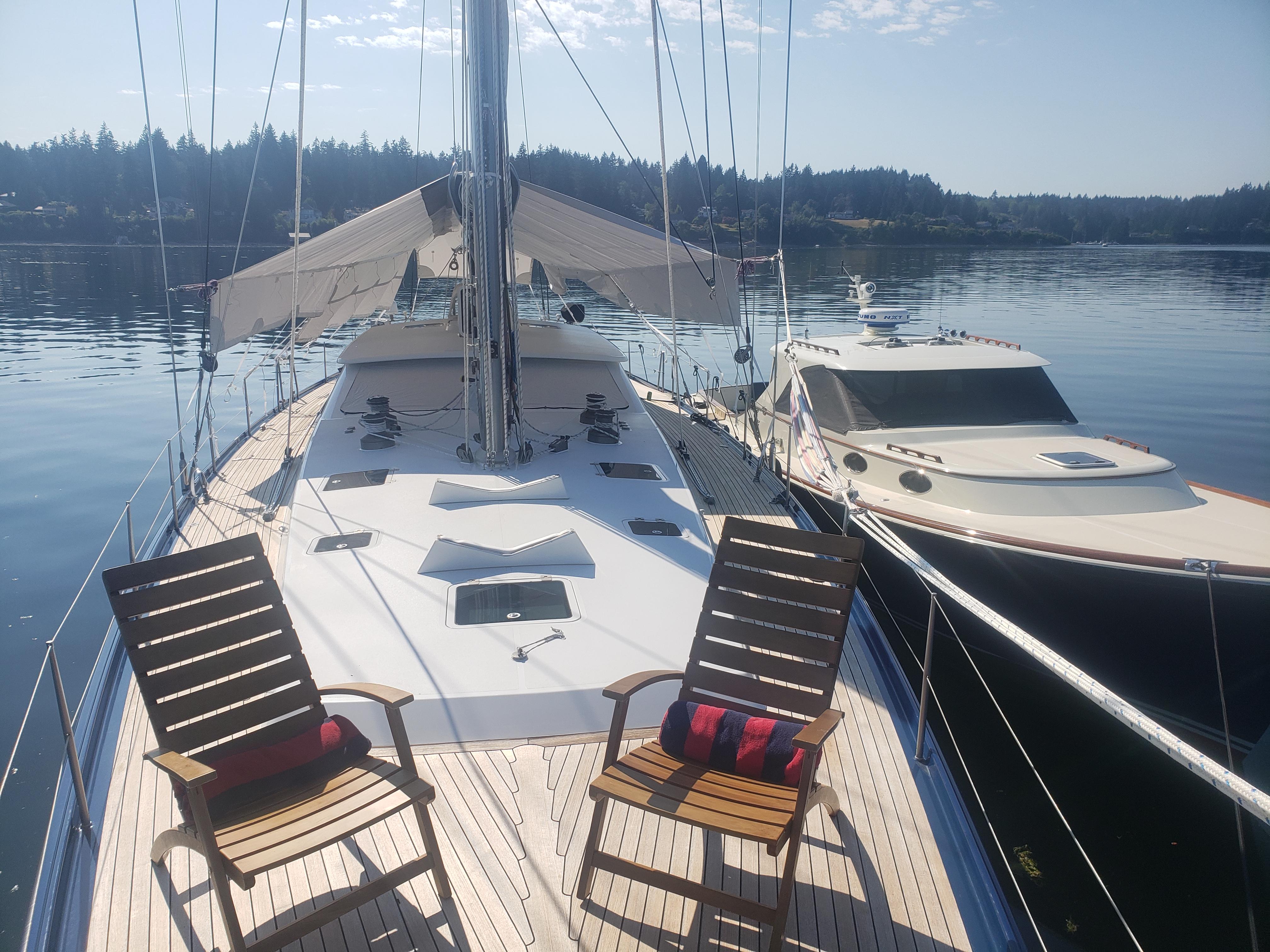

- Main deck is a solid under foot with teak deck overlay
- 70lb CQR plow anchor
- 400' chain

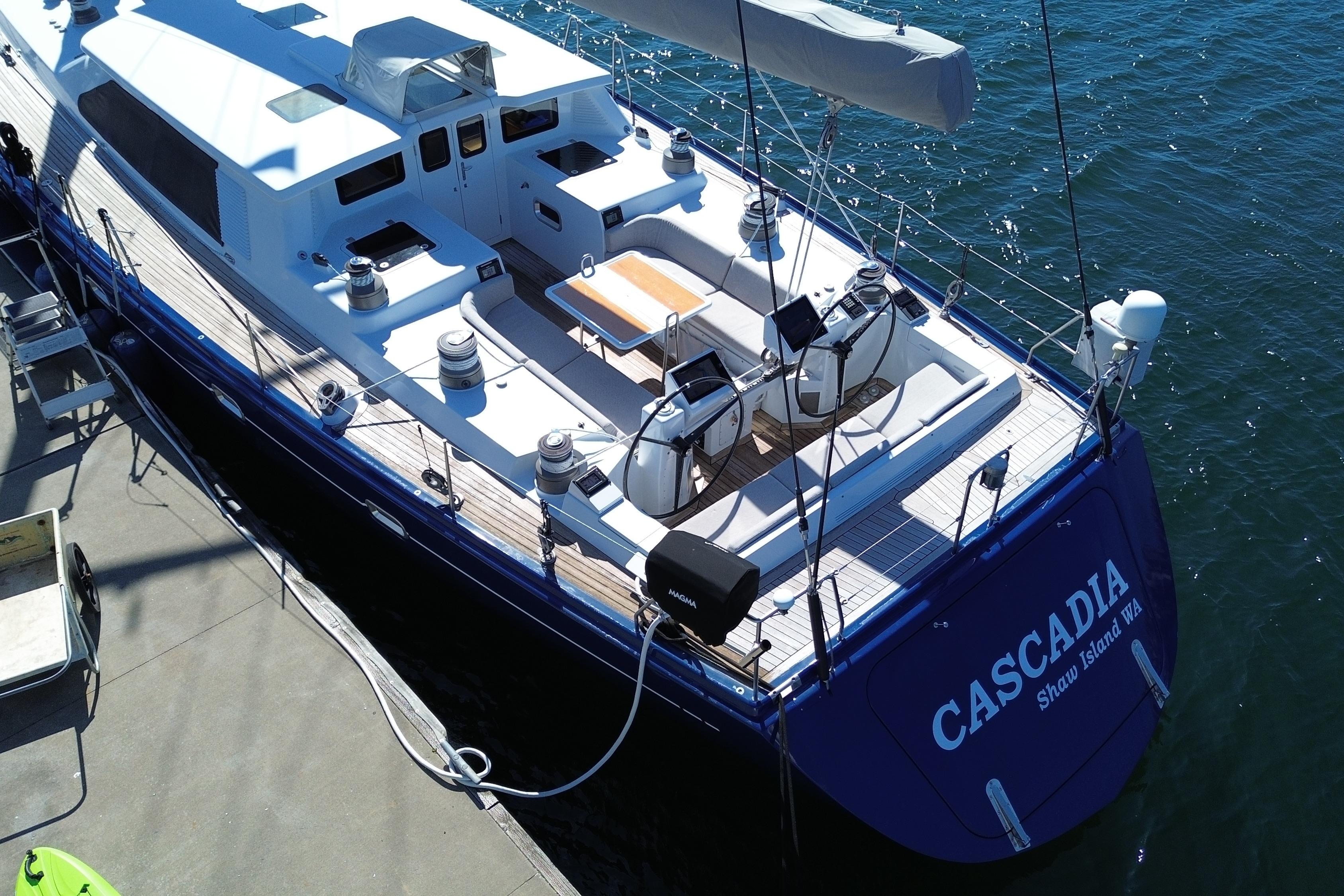

- Twin wheel steering in aft cockpit
- Manual emergency tiller steering
- Switlick 6 man life-raft

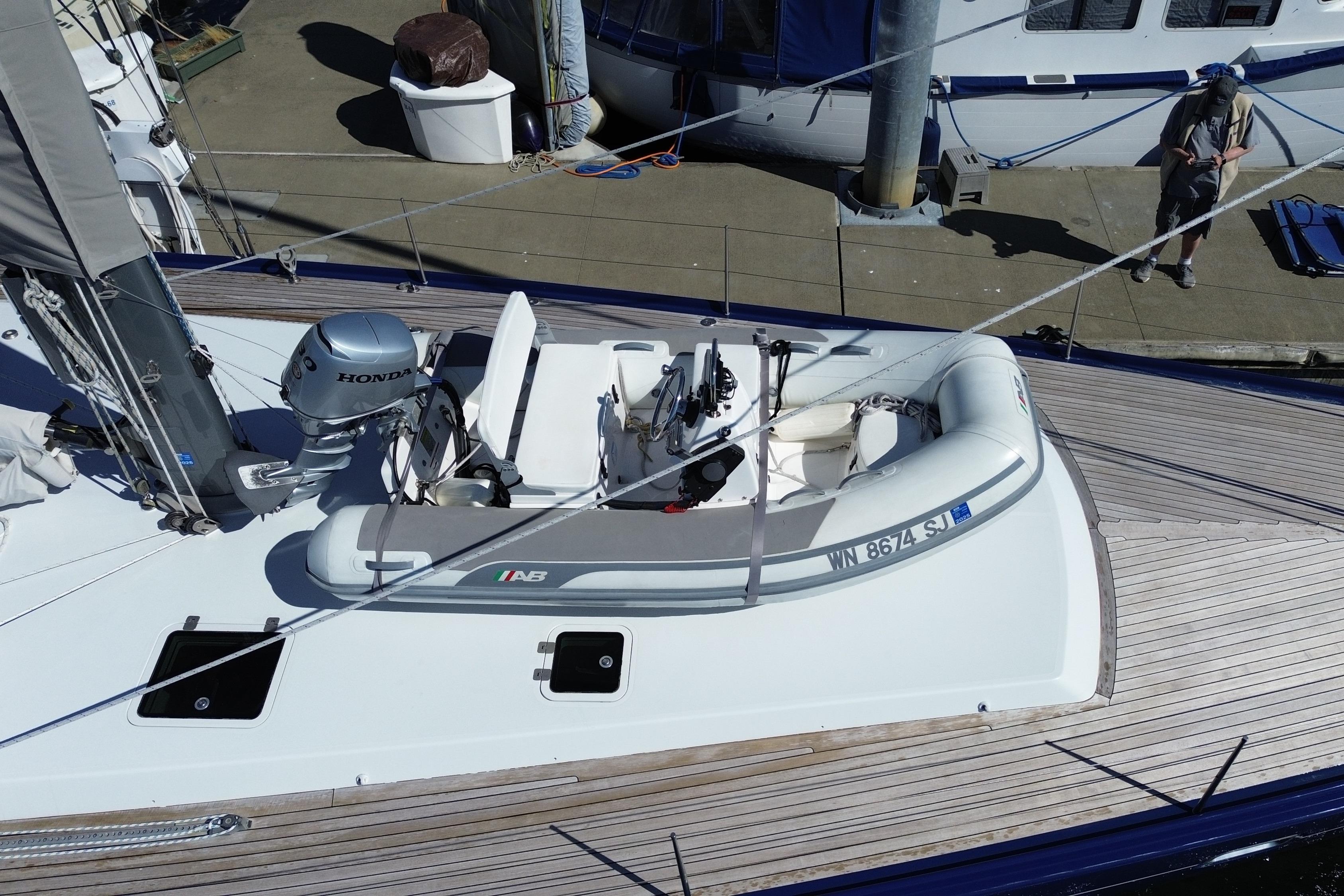

- AB 10' hard bottom inflatable dinghy
- 30hp Honda 4 stroke OB
- Northern Lights 20 KW Generator
- 12 and 24 volt DC electrical systems
- (8) 8D Rolls 240AH house batteries 24V bank
- (2) 8D 240AH 12V bank
- (1) Group 31 start battery
- (1) Group 31 generator start battery
- Victron energy 24 VDC 5000 watt / 120 amp inverter charger
- Smart cord 50 amp 120 volt system
- 30 Amp shore power option
- 30 Amp reverse shore power out for tender charging
- Main mast-carbon fiber triple spreader fractional rig by Offshore spars
- Leisure full carbon fiber boom
- Discontinuous Navtec Nitronic rod rigging
- Reckmann hydraulic roller furling
- (2) Lewmar 77 three speed ST mainsheet winches mounted on aft cockpit powered by 24 VDC hydraulics
- (2) Lewmar 88 three speed ST tailing primary winches. Mounted on aft cockpit powered by 24 VDC hydraulics
- (4) Lewmar 66 ST powered pit winches
- (2) Lewmar 66 three speed ST running back winches mounted forward cockpit
- Lewmar traveler
- Lewmar sail tracks
- Navtec hydraulic boom vang
- Leisure Furl in-boom mainsail furling
- Spinlock rope clutches
- Carbon fiber spinnaker pole
- Navtec hydraulic backstay adjuster
- North Sails 3Di Mainsail w/ grey scrim - rigged and on boom
- North Sails Genoa 3Di with grey scrim - on roller furler
- North Sails Staysail
- Quantum Laminate Code O
- Asymmetric Spinnaker with ATN sock
- Quantum Cuben fiber mainsail
- Quantum Cuben fiber jib
- Older sails
Also included is a storage container currently in the dry storage yard at Shilshole.
Photo credit to Neil Rabinowitz for most images.
